HMS JASMINE - Headquarters Management System dedicated to Corps, Division, Brigade & Regiment

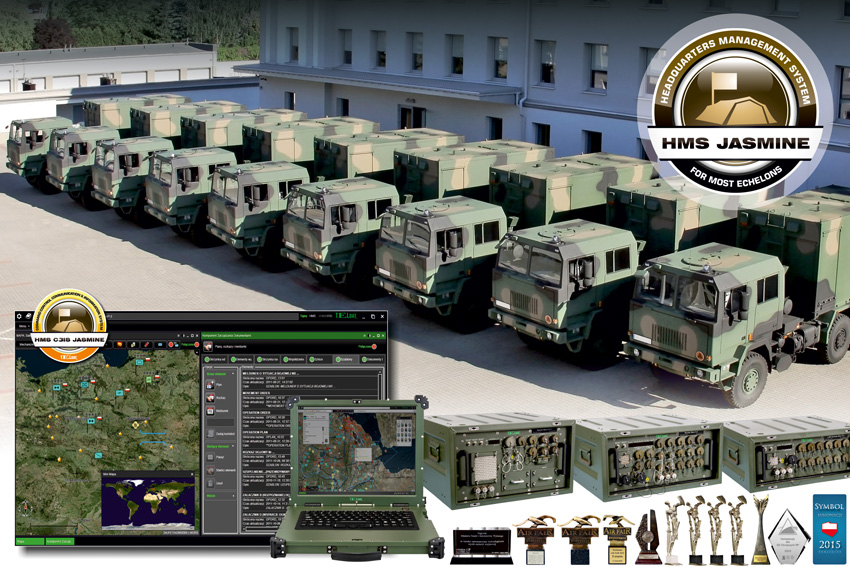

HMS JASMINE (Headquarters Management System) in shelter version (also called the Integrated Data Communications Node JASMINE as well as used with Mobile Command Post Module) is a comprehensive, network centric battle management system dedicated to the operational and tactical echelons or crisis operations structures. This solution is one of the main components of Network Centric Data Communication Platform JASMINE. It is an innovative, mobile ICT infrastructure of the highest and medium command’s posts echelons. The system is composed of hardware and software components which are built in a electromagnetic proof container mounted on a vehicle. HMS JASMINE in shelter version can also operate as an autonomous solution.

In the most cases HMS JASMINE in shelter version is composed of:

The electromagnetic proof container for HMS JASMINE in shelter version meets teleinformatic security requirements for data processing to the SECRET level.

HMS JASMINE



HMS JASMINE (Headquarters Management System) in portable version (also called the Integrated Data Communications Node JASMINE as well as used with Mobile Command Post Module) is a comprehensive, network centric battle management system dedicated to the operational and tactical echelons or crisis operations structures. This solution is one of the main components of Network Centric Data Communication Platform JASMINE. It is an innovative, mobile ICT infrastructure of the highest and medium command’s posts echelons. HMS JASMINE in portable version can also operate as an autonomous solution.

In the most cases this solution is composed of the following software:

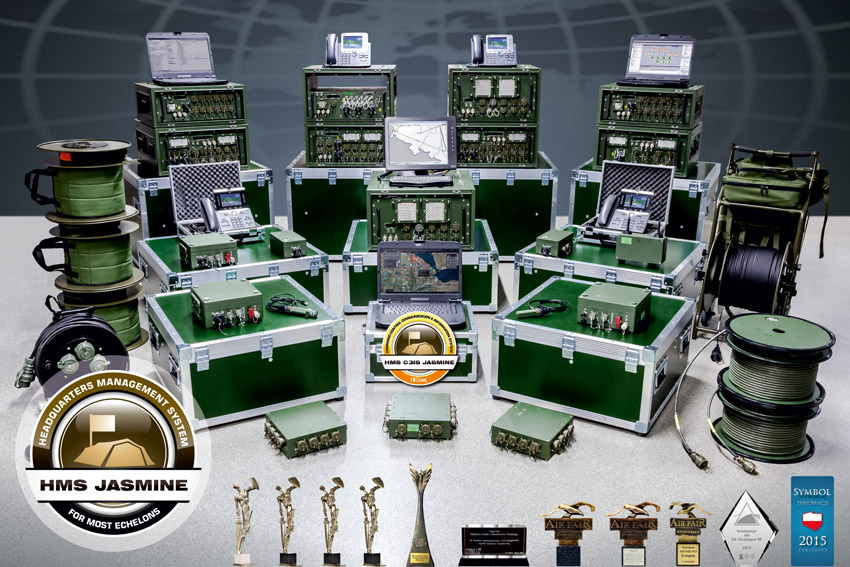

All special devices of HMS JASMINE in a portable version are transported in special portable boxes.

HMS JASMINE main features:

  • As an ICT node:
    • modern, efficient, scalable, mobile and cheaper multi-service ICT infrastructure which enables a development of many independent networks dedicated to command posts at operational and tactical echelon,
    • interoperability with the coalition systems,
    • optimal selection and use of the best available communication medium,
    • transmission of data, video and voice over IP technologies,
    • safe exchange information with use of national IP Crypto,
    • encrypted transmission of voice, data and video,
    • simple - fully automatic, intuitive installation and configuration of all elements (hardware and software) HMS JASMINE using JASMINE Modules Management software,
    • network devices with the highest level of electromagnetic proof;
  • HMS JASMINE provides also the following:
    • significant support of command and communications processes at tactical and operational echelon,
    • efficient cooperation with the lower echelon C3I systems e.g. BMS JASMINE - (Battlefield Management System dedicated to Battalion, Company, Platoon and Section, DSS JASMINE – Dismounted Soldier Combat Management System,
    • significant increase of situational awareness that allows to achieve an information superiority,
    • efficient distribution of information about threats,
    • Friendly Force Tracking,
    • support for fire targeting systems
    • Common Operational Picture and collaboration with other systems to perform COP (mainly JASMINE Web Portal),
    • Collaboration and integration with allied systems including:
      • Command and communications,
      • Air Defense,
      • JFSS JASMINE (Joint Fire Support System) including JTAC,
      • Reconnaissance (information from battlefield sensors e.g. UAV, soldier equipment) including NCBR threats from Reporting Nuclear Detonations, Biological and Chemical Attacks and Predicting and Warning of Associated Hazards and Hazard Areas - STANAG 2103
      • training and simulation e.g. JCATS and VBS2 / VBS3 by the use of High Level Architecture standard,
    • current tactical situation picture and BLUE FORCE TRACKING using NFFI (NATO Friendly Force Information - STANAG 5527) and FFI (Friendly Force Identification),
    • automatic operational data exchange,
    • mission planning, visualization (according to APP-6A/B, MIL 2525B, MIP Implementation Rules) and full support for plans and orders according to STANAG 2014,
    • daily log book and reports,
    • simple input of symbols and icons through the personalized interface,
    • quick exchange of text messages (CHAT) using a pre-defined reports and templates,
    • analysis of terrain situation, also using 3D visualization,
    • analysis and visualization of Fresnel zones (areas of the radio signal) using elevation data, allowing relative location of antennas,
    • management of orders, reports, templates of documents, teaming work, control of information flow,
    • automatic aggregation of information on subordinate troops,
    • archiving of data including geographical layers and voice messages. This allows the accurately reproduce the course of events during the action and define their actual factography,
    • storage of operational data in a JC3IEDM database of the model of the MIP program,
    • replication of MIP data at the tactical level with the use of BRM protocol (Battlefield Replication Mechanism) via radio communication means,
    • data transformation between models C2IEDM and JC3IEDM - MIP (version 2, 3 & 3.1),
    • Data Exchange Mechanism with the use DEM B2 and DEM B3 protocols and ADEM (Alternate Development and Exchange Method),
    • message exchange align with standards MIP MEM B2 & B3, ADatP-3 (version 11C/F, 12.2, 13.1 & 14), OTH-GOLD, Link 11B, Link 16 (JREAP C and SIMPLE) and also VMF (Variable Message Format),
    • bilateral data conversion between ADatP-3 and MIP Data Base,
    • communication with JCOP and NCOP systems using NVG 1.4, 1.5 and JIPS 0.5, 0.6,
    • support for e-mail service in client software version,
    • integration with TELDAT Battlefield Directory services STANAG 4644,
    • access to the operational data and HMS C3IS JASMINE system also by the WEB application (JASMINE Web Portal),
    • application of vector topographic underlays distributed in VPF SHP technology and raster topographic underlays in CADRG, ECW, MrSID,, GeoTIFF and JPEG technologies and maps of DTED terrain model,
    • access to topographic underlays distributed with the WMS (Web Map Service) and WFS (Web Future Service) technologies,
    • Windows 8 operating system and its earlier versions.

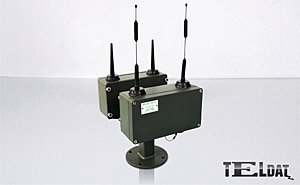

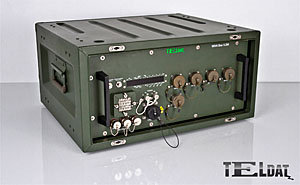

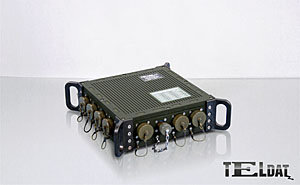

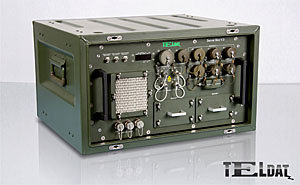

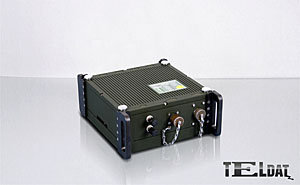

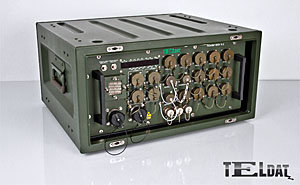

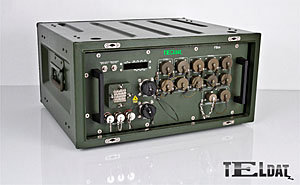

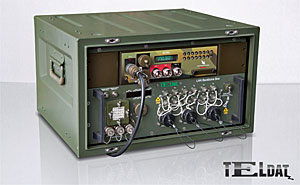

HMS JASMINE in shelter and portable versions depending on the needs arising from the place of use in a mobile (field) ICT system consist of the following devices. One of the versions is shown below.

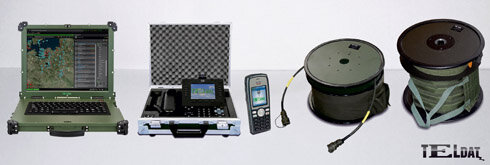

HMS JASMINE may be made depending on the sets of: tactical PC workstations, IP phones, wireless IP phones, GPS, IP videoconference, optical fiber and Ethernet (UTP) enhanced cable.




Examples of practical use of HMS JASMINE:



HMS JASMINE (including its main hardware and software components) was many times awarded:

  • the special distinction granted by the Polish MOD in the Innowacje dla Sił Zbrojnych RP 2015 competition for the Network Centric Data Communication Platform JASMINE as the innovative, comprehensive, mutually consistent and unique System of Systems (HMS JASMINE is one of the main components) in the scope of (including automation) command and communication, dedicated for the all command and control echelons, including dismounted soldier;

  • The Republic of Poland President’s Award, which is granted annually for the best product, which improves level of safety of soldiers of the Polish Armed Forces - integration of Automatic Indicator of Contamination PROMETHEUS with JASMINE - System of the Systems (one of the main component of its was HMS JASMINE) obtained at the International Defence Industry Exhibition MSPO 2014 in Kielce;

  • special honour and the award of Minister of Science and Higher Education for the most technologically advanced product of a military technics – JASMINE System, during the International Defence Industry Exhibition 2007. HMS JASMINE is one of its main components.

  • 2 Defender prizes, granted at the subsequent editions of MSPO as follows:
    • for the Mobile Data Communication Node equipped with the HMS JASMINE;

    • for the Integrated Information System WTS where the HMS JASMINE solutions was also one of the main components

  • 2 prizes granted during the subsequent editions of Air Fair international fairs:
    • main prize granted for the Mobile Data Communication Node equipped with the HMS JASMINE,
